제품 세부 정보

집 > 상품 >

3각 회전식 십자문 게이트

304 Stainless Steel Swing Turnstile with Bi-Directional Access and Anti-Tailgating for Secure Entry Control

모든 범주

금속 탐지장

연락주세요

Mrs. Betty

betty@ankuai.net

+8613827208652

지금 접촉하세요

304 Stainless Steel Swing Turnstile with Bi-Directional Access and Anti-Tailgating for Secure Entry Control

브랜드 이름:	ankuai
모델 번호:	AKT321, AKT321
MOQ:	2
가격:	$445-518

상세 정보

제품 설명

상세 정보

원래 장소:

중국 광둥

액세스 제어 유형:

ESD 시스템, 얼굴 인식, 지문, IC 카드, QR 코드, RFID 카드

장벽 오픈/클로즈 타임:

0.2초, 0.4초, 1초

통신 인터페이스:

TCP/IP, RS485

작동 방향:

배리어 모터:

브러시리스 모터

304 스테인레스 스틸, 플렉시 유리

전력 소비:

100W/24V

통과 속도:

30개 사람들 / 분 (접점 단자), 20개 사람들 / 분 (노멀 클로즈)

팔은 / 종료 시간을 엽니다:

1400*180*1020mm

패스 너비:

700mm

전원공급장치:

AC220V ± 10V, 50Hz / AC110V ± 10V, 60Hz

온도 범위:

-15에서 60

통신거리:

<=1200m

강조하다:

304 Stainless Steel Swing Turnstile

Bi-Directional Swing Turnstile

Anti-Tailgating Flap Barrier Turnstile

제품 설명

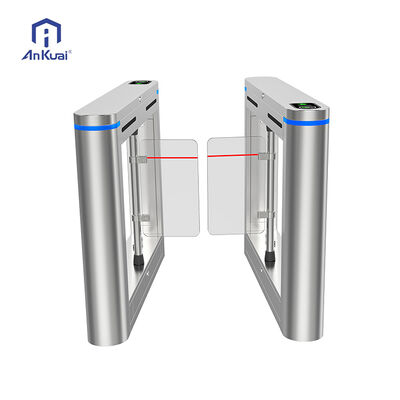

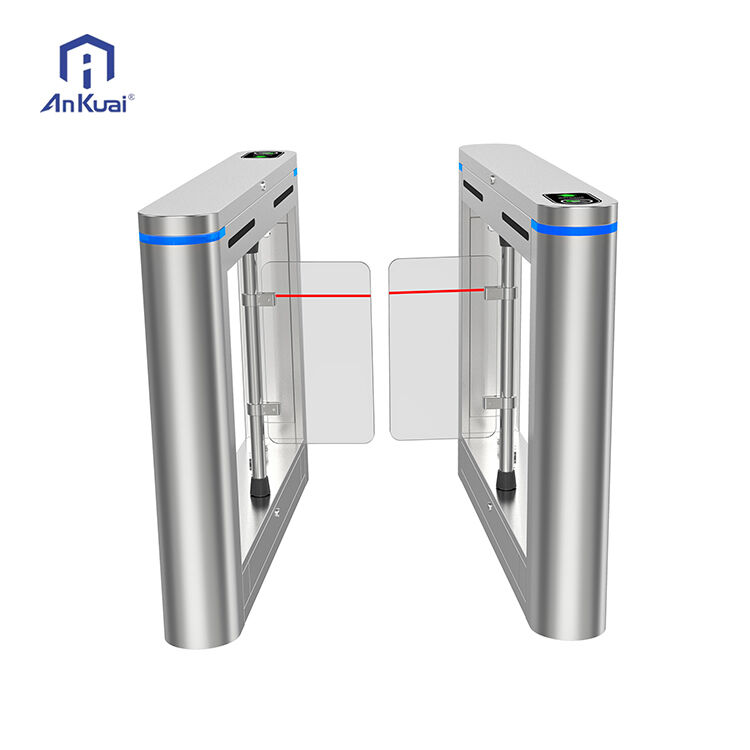

304 Stainless Steel Swing Turnstile

Bi-directional access control turnstile with anti-tailgating and double anti-clamping features, designed for commercial building security.

Technical Specifications

Power Supply	AC220V ± 10V, 50Hz / AC110V ± 10V, 60Hz
Power Consumption	100W/24V
Temperature Range	-15 to 60 degrees
Humidity	<95%, without concretion
Passage Width	<=600 mm
Passing Speed	30 persons/min (normal open), 20 persons/min (normal close)
Arm Open/Close Time	2.5 seconds
Communication Interface	RS485 (Distance: <=1200m)
Material	304 stainless steel; Arm - Plexiglass
Dimension	14001801020 mm
Arm Length	700mm
Working Environment	Indoors or outdoors with a shed

Product Features

Advanced Security Features

Bi-directional access control
Anti-tailgating prevention
Double anti-clamping safety system

Durable Construction

304 stainless steel body for corrosion resistance
Plexiglass arm for visibility and durability

Reliable Performance

Suitable for both indoor and outdoor installation
High traffic capacity with efficient passage rates

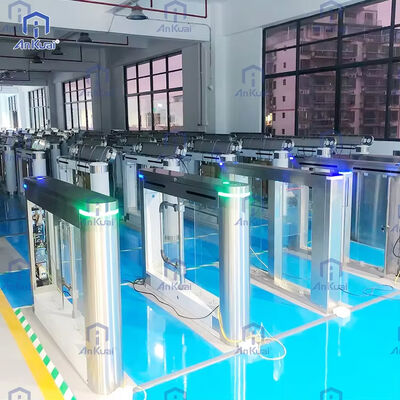

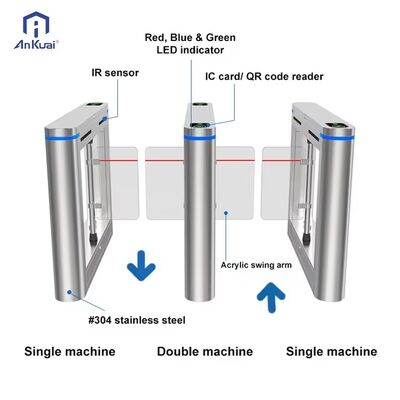

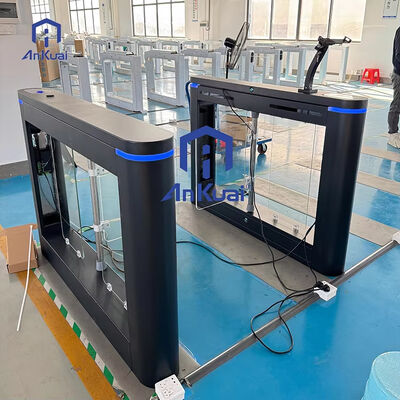

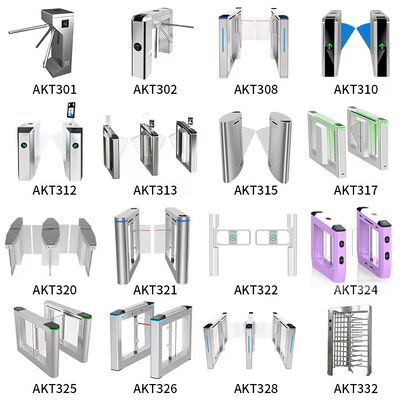

Additional Product Images

Frequently Asked Questions

Are You A Manufacturer Or A Trading Company?

We are one of the top 3 companies in LPR system and security industry with more than 10 years of experience. All the LPR management software is developed by our R&D team.

What Kind Of Technical Support Can You Provide?

We have professional R&D team and technical department that can assist you with installation tasks and technical guidance. If necessary, our engineer could travel to your country to provide service.

What Products Can You Provide?

Barriers, advertising barrier gates, turnstiles, and roadblock equipment.

Can You Provide OEM Service?

Yes, we can. As we have our own R&D team, we can develop software and manufacture hardware according to your requirements.

What Countries License Plate Could Be Recognized By Your LPR Software?

Our LPR system can recognize license plates from 120+ countries. You can provide a license plate number picture to us for testing, and we will send the recognition result video for your review.

If you have questions about our products, please send your inquiry to us. We will reply as soon as possible.
